High Availability (HA)

NexappOS High Availability (HA) ensures continuous network operation by providing redundancy through a cluster of two firewalls. If the primary firewall fails due to hardware issues, software problems, or maintenance, a backup firewall automatically takes over all network services and traffic handling, minimizing downtime.

This is crucial for environments where uninterrupted internet access, VPN connectivity, and security services are essential for daily operations.

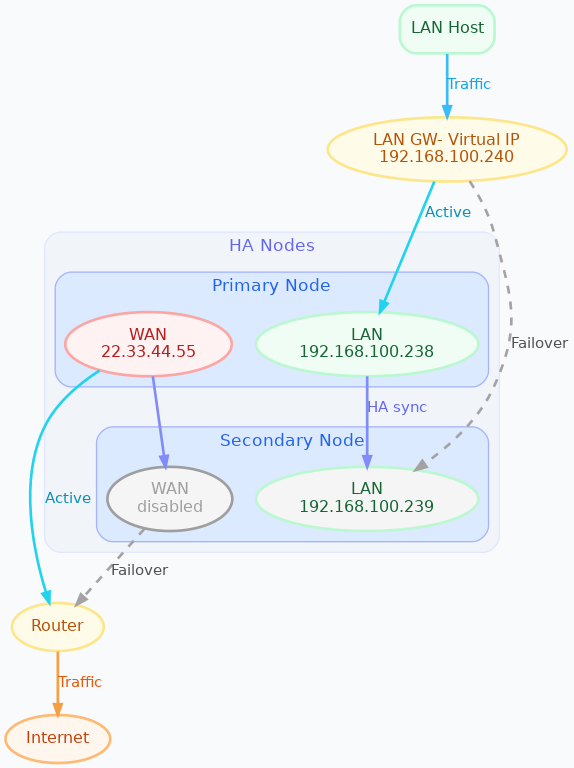

HA diagram

high availability

Key concepts

Before setting up HA, make sure these concepts are clear:

Primary Node: the firewall actively handling traffic and services.
Secondary (Backup) Node: standby firewall that takes over if the primary fails.
Virtual IP (VIP): shared IP address per interface. Clients must use the VIP as:
- default gateway
- DNS server
- VPN endpoint so that failover is transparent.

HA roles

Master
- The node that has all interfaces active and processes all traffic.
- Under normal conditions, the Primary Node is Master.
Backup
- The node that does not process traffic.
- Under normal conditions, the Secondary Node is Backup.

Important: All configuration changes must be made on the primary node. The secondary should be treated as read-only, except for LAN interface network setup needed by the cluster.

All other settings (firewall rules, VPNs, Threat Shield, etc.) are synchronized automatically from primary to secondary.

How HA works

Heartbeat (VRRP)
- Primary and secondary continuously check each other over VRRP.
- If primary fails, secondary becomes Master and takes over VIPs.
Settings synchronization
- Primary sends configuration securely to the secondary (rsync over SSH).
- Connection state (conntrack) is also synchronized.
Role-based service control
- Backup node keeps services off to avoid conflicts.
- When promoted to Master, it enables all services automatically.

Some changes still require manual HA updates (example: adding/removing LAN interfaces).

Supported features

HA synchronization supports:

Firewall rules, port forwarding, DHCP, DNS
VPNs (OpenVPN, IPsec, WireGuard)
QoS, MultiWAN, DPI rules
Reverse proxy, ACME certificates
Static routes
Threat Shield IP (banip)
Threat Shield DNS (adblock)
Users and objects
Netmap, NAT helpers, DDNS
Controller connection and subscription (ns-plug)
Active connections tracking (conntrackd)
Hotspot (dedalo) only on physical interfaces

WAN / LAN support matrix

WAN interface types supported

Static IPv4 / IPv6
DHCP IPv4
Physical Ethernet
VLANs (on physical/bond/bridge)
PPPoE (physical or VLAN)
Bonds and bridges for WANs

Interface limitations

Only IPv4 supported on LAN interfaces
HA interface must be physical
Bonds/bridges not supported on HA interface
Hotspot supported only on physical interfaces

General limitations

Extra packages not in official image are not supported
rsyslog config is not synced (use controller for remote logs)
After first sync, secondary gets same hostname as primary

Requirements

Before setup:

Two identical firewalls (same NIC names/order: eth0, eth1, …)
Both nodes connected to the same LAN broadcast domain
Static IPs for all LAN interfaces that will host VIPs
HA interface must be a physical LAN port on both nodes

Setup process (overview)

Install same NexappOS/NethSecurity version on both nodes.
Cable both nodes into the same LAN segments (ideally redundant switches).
Configure the HA interface on both nodes with static IPs.
Initialize HA cluster using ns-ha-config.
Configure WAN(s) on primary only (auto-synced to secondary).
Verify HA status and sync.
Add optional extra LAN interfaces to cluster.
Add optional extra VIPs.

Network cabling

LAN

Connect both LAN interfaces to the same broadcast domain.
Prefer redundant switches.
If switches are linked, they must support STP to avoid loops.

WAN

Connect both WAN ports to the ISP/router.
WANs do not trigger failover (to avoid MultiWAN conflicts).
WAN config is done only on primary.

HA interface configuration

On secondary:
- configure a physical interface with static LAN IP (example: 192.168.100.239)
On primary:
- configure matching interface with static LAN IP (example: 192.168.100.238)

These are management IPs used even if HA is disabled.

Cluster initialization

Run on primary node:

Check requirements

ns-ha-config check-primary-node <lan_interface>
ns-ha-config check-backup-node <backup_node_ip> <lan_interface>

Optional password pipe:

echo "<backup_root_password>" | ns-ha-config check-backup-node <backup_node_ip> <lan_interface>

Initialize primary

ns-ha-config init-primary-node <primary_node_ip> <backup_node_ip> <virtual_ip_cidr> <lan_interface>

This configures:

keepalived + VIP
conntrackd sync
rsync over SSH
dropbear sync daemon on port 65022 (keys only)

Initialize secondary (from primary)

ns-ha-config init-backup-node <lan_interface>

Optional password pipe:

echo "<backup_root_password>" | ns-ha-config init-backup-node <lan_interface>

WAN interfaces

No special HA steps required.

Configure WAN(s) on primary in Interfaces and devices.
HA scripts replicate to secondary automatically.
Secondary keeps WAN down unless it becomes Master.

Verify configuration

ns-ha-config show-config
ns-ha-config status

First sync may take a few minutes. After sync, status should be Up to Date.

Add additional LAN interfaces

Before adding:

the interface must exist on both nodes
both nodes must have static IPs set
device hierarchy must match (same VLAN parents, bonds, etc.)

Command:

ns-ha-config add-lan-interface <primary_ip> <backup_ip> <vip_ip_cidr>

Example:

ns-ha-config add-lan-interface 192.168.200.1 192.168.200.2 192.168.200.253/24

Hotspot in HA

Supported with constraints:

hotspot must run only on physical interfaces
secondary must have identical NICs
MAC address is copied on failover to preserve captive portal behavior
sessions stored in RAM → users may need re-auth after failover

Extra Virtual IPs

Add VIPs that should fail over:

ns-ha-config add-vip <interface> <vip_ip_cidr>

Remove interfaces / VIPs

Remove interface from HA:

ns-ha-config remove-interface <interface>

Remove VIP:

ns-ha-config remove-vip <interface> <vip_ip_cidr>

Configuration example

Assume:

Primary LAN IP: 192.168.100.238
Secondary LAN IP: 192.168.100.239
LAN VIP: 192.168.100.240/24
LAN interface name: lan
Secondary root password: backup_root_password

Run on primary:

# Check requirements
ns-ha-config check-primary-node lan
echo "backup_root_password" | ns-ha-config check-backup-node 192.168.100.239 lan

# Initialize primary
ns-ha-config init-primary-node 192.168.100.238 192.168.100.239 192.168.100.240/24 lan

# Initialize secondary (run from primary)
echo "backup_root_password" | ns-ha-config init-backup-node lan
